Working Height: 38.60m
Horizontal outreach, max. (140 kg) 23.30 m
Horizontal outreach, max. (300 kg) 20.20 m
Horizontal outreach, max. (400 kg) 18.30 m
Safe Working Load Max: 400kg

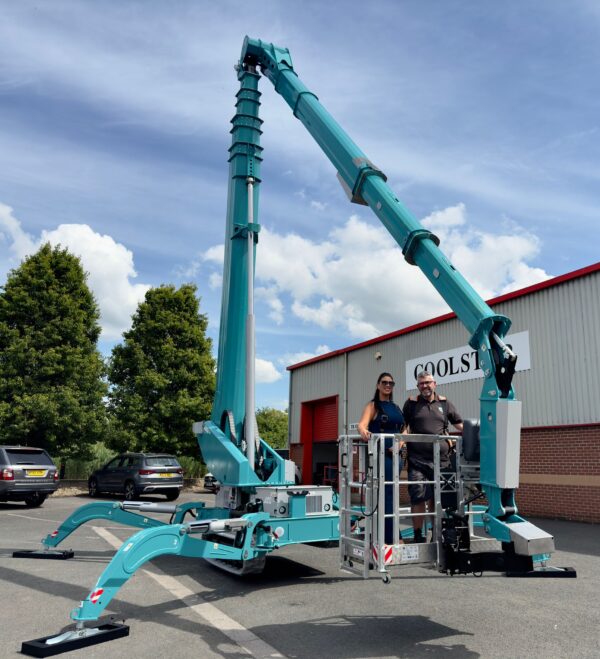

The LEO 39GT Plus has a powerful track drive with hydraulic braking system which is ideal for precise manoeuvring via the sensitive remote-control box. The white, non-marking rubber tracks with specially arranged profile for optimal grip and hydraulically height and width adjustable crawler track drive allows for getting into some really tight places. The electrohydraulic stabilisation system with automatic levelling and variable outrigger system with one side or both sides narrow setup option is ideal when the set up area is restricted and outrigger pads are included.
Electric motor that can be plugged in for indoor use and a diesel engine for outdoors makes the machine very versatile in all applications. Hydraulic emergency lowering via electric pump for ground control rescue and additional hydraulic drive for boom recovery via platform controls. The hydraulic system is filled with biodegradable hydraulic oil and the system is protected by pressure relief valves. There is a digital display at the control panel with additional display in the platform control box showing availability of control functions, amount of control used, fuel level etc.
